Hangzhou Epsole Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of foam block moulding machine in China. We warmly welcome you to buy high quality foam block moulding machine for sale here from our factory. Good service and reasonable price are available.

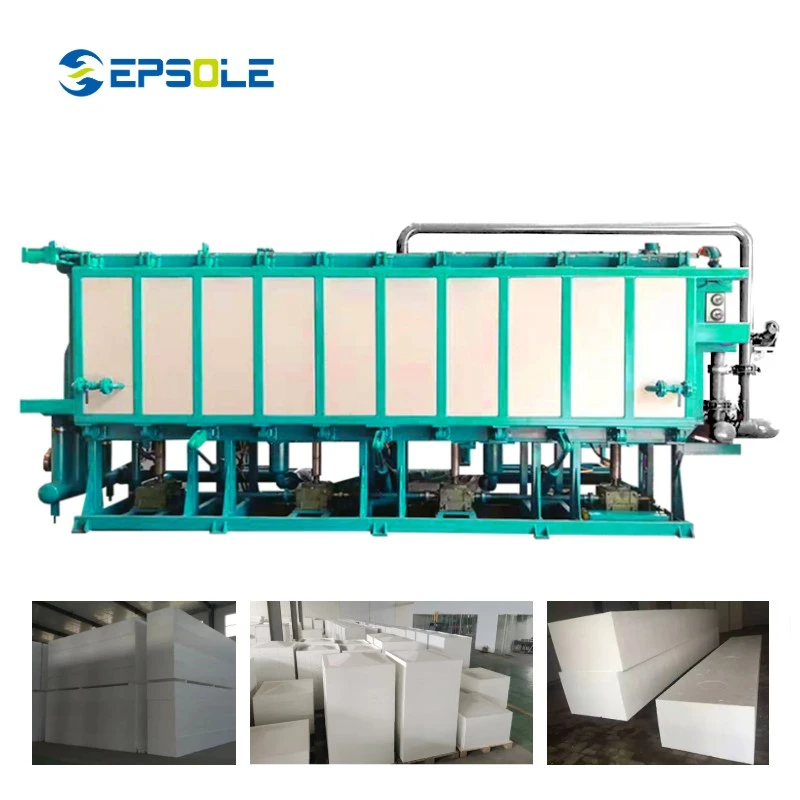

EPS Block Molding Machine – Core Equipment for EPS Foam Block Production
The EPS block molding machine is the essential equipment for producing expanded polystyrene (EPS) foam blocks - the raw material for building insulation boards, packaging materials, and construction components. Pre‑expanded EPS beads are injected into a rectangular mold cavity, fused under high‑temperature steam (100–105°C, 0.6–0.8 MPa), and hardened through air cooling or vacuum cooling to form uniform, rigid foam blocks. These blocks are then cut into boards for external wall insulation systems (ETICS/EIFS), sandwich panel cores, cold storage insulation, floor heating, and roof insulation.
With over 20 years of EPS machinery manufacturing experience, Epsole supplies high‑performance automatic block molding machines in multiple size series (ESB200 to ESB600) that deliver density control across 6–40 kg/m³ range, 4–8 minute molding cycles, and energy savings of up to 20% through our proprietary three‑valve steam control system.
|
Item |
ESB200A ESB200V |
ESB300A ESB300V |
ESB400A ESB400V |
ESB600A ESB600V |
|
|
Mould Cavity Size |
2040×1240×1030mm |
3060×1240×1030mm |
4080×1240×1030mm |
5100×1240×1030mm | |
|
Block Size |
2000×1200×1000mm |
3000×1200×1000mm |
4000×1200×1000mm |
5000×1200×1000mm | |
|
Outside Dimensions |
L × W× H |
5500×4500×3800mm |
5500×4500×4800mm |
5500×4500×5800mm |
5500×4500×7800mm |
|
Weight |
10.0t |
12.0t |
15.0t |
18.0t | |
|
Room Height Required |
7000mm |
7000mm |
7000mm |
9000mm | |
|
Note: We custom make machines according to customer's requirement. |
|||||
Core Product Advantages
ESB Series Models
Fully customizable to meet specific client requirements, ensuring precise alignment between the equipment and downstream cutting specifications, thereby minimizing raw material waste.
Three-Ball Valve Steam Control System
Independently controls the main steam inlet, as well as the upper and lower molds; compared to traditional single-valve systems, this design achieves steam savings of 20%.
High-Efficiency Vacuum Cooling System
The equipment offers an optional upgrade to a high-efficiency vacuum system paired with a cooling unit, which significantly shortens the molding cycle and reduces the moisture content of the molded blocks.
High-Strength, Rigid Machine Frame
The surface undergoes a treatment process involving rust removal via sandblasting followed by a two-coat paint application, effectively extending the equipment's service life-even in outdoor installation environments.
PLC + HMI Fully Automated Control System
Enables fully automated cycle operations, encompassing mold closing, material feeding, steam heating/cooking, heat preservation/curing, air/vacuum cooling, mold opening, and block ejection.
Optional Teflon-Coated Molds
This specialized coating reduces demolding resistance for the finished foam blocks while simultaneously enhancing the flatness and surface finish of the molded material.
why choose us
Comprehensive Technical Support
We provide wholesale clients with end-to-end services, ranging from equipment selection and plant layout planning to equipment assembly and commissioning.
Overseas Installation & Remote Commissioning
Our team of professional engineers is available to travel to overseas installation sites to provide on-site guidance for installation, complete machine commissioning, and integrated system testing.
Export Qualifications & International Quality Certifications
We hold ISO 9001:2015 Quality Management Certification and can provide CE certification; we also supply all necessary export documentation, including commercial invoices and packing lists.
Flexible Settlement & Payment Solutions
We accept payment via TT (Telegraphic Transfer) and Sight L/C (Letter of Credit). Trade terms are flexible and negotiable-we offer options including EXW, FOB Shanghai Port, and CIF.
