Hangzhou Epsole Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of cnc hotwire eps foam cutter in China. We warmly welcome you to buy high quality cnc hotwire eps foam cutter for sale here from our factory. Good service and reasonable price are available.

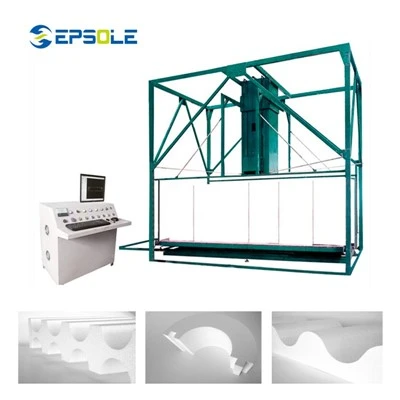

CNC Hot Wire Foam Cutting Machine – Precision Contour Cutting for Mattress & Upholstery Industry
The CNC hot wire foam cutting machine is an industrial‑grade contour cutting system designed for precision shaping of both rigid EPS (expandable polystyrene) and flexible polyurethane (PU) foam. It is widely used in mattress production (memory foam, latex, and polyurethane foam layers), sofa cushions, automotive seating, packaging inserts, and 3D signage.
Unlike conventional vertical slicers that only cut straight blocks or simple sheets, our 4‑axis CNC hot wire cutter transforms 2D CAD drawings directly into complex 3D contours-from ergonomic mattress toppers and contoured sofa armrests to custom EPS packaging and architectural foam sculptures.
| Category | Technical Parameters | Specifications / Data Range |
|---|---|---|
| Processing Capabilities | Maximum Workpiece Dimensions | 6500×3500×2000 mm |
| Cutting Precision | ±0.5 mm | |
| Cutting Wire Temperature Range | 200–400°C | |
| Blade Wire Diameter | 0.5–2.0 mm | |
| Blade-Wire Technology | Blade Material | NiCr 80/20 Nickel-Chromium Alloy (Standard) / Fast-Grinding Wire (PU) |
| Cutter Wire Configuration | Single-strand / Multi-strand Parallel (up to 20 strands) | |
| Cutter Wire Lifespan | ≥100 hours of continuous operation | |
| Drive and Control | Drive System | Stepper Motor / Closed-loop Servo Motor (Optional) |
| Multi-axis simultaneous control | 4-Axis Synchronous Control (X, Y, Z, Rotary Axis) | |
| Linear Guide | Taiwan HIWIN Linear Guide Rails / High-Precision Ball Screws | |
| Control System | Controller | Industrial PC + Multi-axis Motion Control Card |
| Operation Interface | 17-inch Industrial Touchscreen + Chinese/English Software | |
| Drawing Import | AutoCAD DXF/DWG, CorelDRAW, Type3, G‑code | |
| Recipe Storage | Over 100 sets | |
| Electrical and Energy Consumption | transformer | 3–20 kVA Multi-Tap Adjustable |
| Total Power | 8–20 KW | |
| Supply Voltage | 380V/50Hz | |
| Compliance Certification | ISO 9001:2015, CE Certification | A complete set of export customs clearance documents can be provided. |
Core Technological Advantages
Precision Servo Drive + Linear Guide System
The equipment features a transmission structure combining high-torque servo motors with high-precision linear guides, ensuring exceptional cutting accuracy and long-term operational stability.
01
High-Performance Cutting Head System
Depending on the hardness and thickness characteristics of the material being processed, the equipment offers a selection of interchangeable cutting heads to suit specific requirements.
02
Intelligent Control Software
The control system is built upon a professional architecture featuring an industrial PC paired with a multi-axis motion control card, and is equipped with specialized software designed specifically for foam cutting applications.
03
Multi-Material Compatibility
The equipment is capable of processing a wide variety of foam materials, including PU, EPS, memory foam, EPE, EVA, recycled sponge, latex, and others.
04
Dust-Free, Eco-Friendly Cutting
The equipment employs an active dust removal system, featuring a high-power dust collection port strategically positioned within the cutting head's operational zone and connected to a robust dust collector.
05
why choose us
Comprehensive Technical Support
We provide wholesale clients with end-to-end services, ranging from equipment selection and plant layout planning to equipment assembly and commissioning.
Overseas Installation & Remote Commissioning
Our team of professional engineers is available to travel to overseas installation sites to provide on-site guidance for installation, complete machine commissioning, and integrated system testing.
Export Qualifications & International Quality Certifications
We hold ISO 9001:2015 Quality Management Certification and can provide CE certification; we also supply all necessary export documentation, including commercial invoices and packing lists.
Flexible Settlement & Payment Solutions
We accept payment via TT (Telegraphic Transfer) and Sight L/C (Letter of Credit). Trade terms are flexible and negotiable-we offer options including EXW, FOB Shanghai Port, and CIF.
 |
 |
