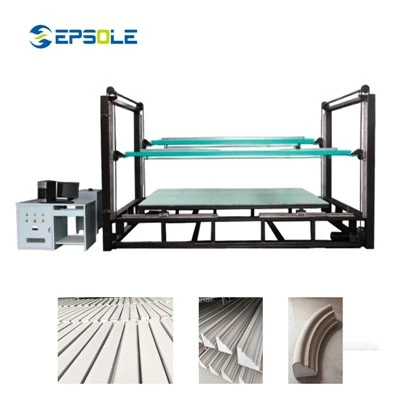

CNC EPS Hot Wire Cutting Machine | 0.5mm Precision, 20kW Transformer, 4-Axis | Epsole
CNC hot wire cutting systems for Expandable Polystyrene (EPS) architectural elements offer an efficient method for manufacturing uniform, sharp-edged interior and exterior cornices, crown moldings, and column bases.
Unlike traditional blade cutting or manual carving, CNC hot wire systems utilize a tensioned resistance wire heated via regulated electrical current to cleanly melt through the EPS foam block along a programmed two-dimensional or three-dimensional path.
| Technical Parameter | Specification | Industry Benchmark | Customer Value |
|---|---|---|---|
| Cutting Precision | ±0.5 mm (Standard: Stepper Motor + Linear Guide); ±0.1 mm (High-End Version: Servo Motor) | ±1–2mm | With a contour tolerance of ±0.5 mm, decorative components can be installed directly without the need for on-site trimming, thereby reducing secondary construction costs. |
| Maximum Cutting Speed | 0–4 m/min(Stepless Speed Control) | 0–3 m/min | Higher production capacity, faster delivery for large-volume orders. |
| Transformer Capacity | 3KVA–20KVA | 3–10 KVA | The high-capacity transformer supports a greater number of parallel hot wires, enabling compatibility with the cutting of foams of various densities. |
| Output Voltage | 0–70V | Fixed or Narrow Range | Wide voltage regulation adapts to varying material densities, ensuring a smooth cutting surface. |
| Parallel Cutting Capability | 10–20 Hot Wires (Configurable) | 1–5 pieces | Multiple finished products are processed simultaneously, significantly reducing the labor cost per unit. |
| Control Architecture | PC + Multi-axis Motion Control Card; Siemens or Mitsubishi PLC (Optional) | Embedded System or Standard PC | Direct CAD/DXF import eliminates the need for manual programming, significantly reducing changeover times. |
| Heating Wire Material | NiCr 80/20 Nickel-Chromium Alloy | Standard Iron-Chromium-Aluminum | Extended service life, with smooth cuts free of slag. |
| Total Machine Weight | 1.5–3T | 1–2T | High-rigidity frame with excellent long-term precision retention. |
| Compliance Certification | CE, ISO 9001:2015 | Depends on the supplier | Hassle-free Export Clearance: Compliant Entry into European and US Markets |
CNC Multi-Axis Control System
CNC Multi-Axis Control System
Direct import of CAD drawings; wire-cutting capability enables the processing of complex 2D and 3D shapes.
Cutting Precision
Stepper motors + high-precision linear guides; contour tolerance: ±0.5 mm
Multi-Wire Parallel Cutting System
Simultaneous batch production using 10–20 hot wires, significantly reducing labor costs per piece
High-Capacity Cutting Transformer
Wide voltage regulation range (0–70 V), adaptable to various materials and densities
Cutting Wire Material & Lifespan
NiCr 80/20 nickel-chromium alloy cutting wire offers a long service life and produces smooth, burr-free cuts
Multi-Material Compatibility
Compatible with various foam materials, including EPS, XPS, PU, and others
why choose us
Our products have been exported to over 30 countries and regions, with a cumulative delivery of more than 100 complete EPS production lines.
The entire production line features standardized equipment interfaces and synchronized process data, significantly reducing the coordination costs associated with managing multiple suppliers.
We provide on-site installation, commissioning, and operational training services overseas; our equipment complies with ISO 9001:2015 standards and EU CE directives.
We provide complete export customs clearance documentation, offer flexible trade terms, and accept payment via TT or Sight L/C.
