Name: China Eps Moulding Making Machine Manufacturers, Suppliers - Factory Direct Price - Epsole
Brand: Epsole
SKU: 125284944

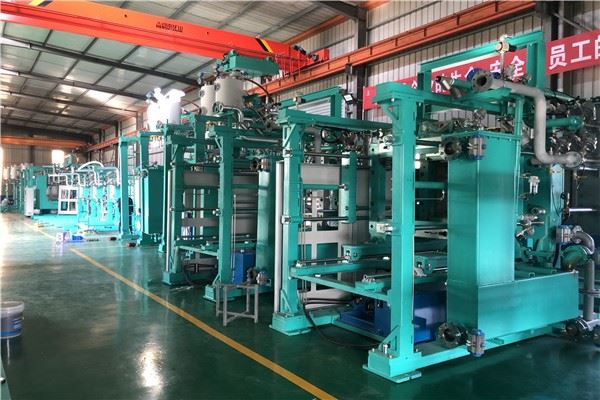

Eps Moulding Making Machine

The foam molding machine system adopts multiple heating methods, adopts the solid and moving mould balancing valve system, controls the instrument and controls the valve parts to complete the circulation, and further saves the steam of the machine. The unstable factors of product quality caused by unstable steam source are solved and the quality is greatly improved. The steam and cooling water valves adopt imported components. The operation is safe and the performance is stable. One person can operate 2-3 machines in the foam molding machine. The use of an additional device on a rotary table (EPS foam foam cutting machine) is generally used for profiling processing, and also for cutting out rotations, including spheres.

Product Details

Hangzhou Epsole Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps moulding making machine in China. We warmly welcome you to buy high quality eps moulding making machine for sale here from our factory. Good service and reasonable price are available.

Machine Type			SMED Shape Moulding machine
Model			ESS1214M	ESS1417M	ESS1915M
Data		unit	ESS1214M	ESS1417M	ESS1915M
Overall		mm	536333104852	536336105152	536337105352
Mould size		mm	800*1300	1200*1400	1500*1900
Product high		mm	350	350	350
Move Distance		mm	1200	1200	1200
Rod	Diameter	mm	80	80	100
Rod	Quantity	pcs	4	4	4
Hopper	Capacity	L	145	145	145
Hopper	Quantity	pcs	2	2	2
Steam	Machine Inlet	DN	100	100	100
	Mould Inlet	DN	50*2	50*2	50*2
	Pressure	bar	6	6	6
	Consumption	Kg	4~5	4~5	4~5
Cooling	Machine Inlet	DN	80	80	80
	Mould Inlet	DN	50	50	50
	Pressure	bar	4	4	4
	Consumption	Kg	0~6.28	0~6.28	0~6.28
Vacuum	Connector		100	100	100
Vacuum	Drainage	L/h	100	100	100
Air	Low	DN	65	65	65
	Low	bar	4	4	4
	High	DN	50	50	50
	High	bar	6	6	6
	Consumption	m³	0.3~0.6	0.3~0.6	0.3~0.6
Hydraulic	Motor	Kw	7.5	11	11
Hydraulic	Capacity	L	400	400	400

1.Eps shape molding machine Make eps foam beads to become big foam board through steam heating and wind cooling.Eps moulding making machine

2.Safety door switch, pause switch and emergency stop three security protection devices;The production of foam products with low water content, dimensional stability, low power consumption;

3.The closed constant pressure foamng barrel features of high heating efficiency and saves stem. The foaming machine has a complete faultself-diagnosis and motor protection system to ensure the safe operation and protection of the equipment.Eps moulding making machine

4.Vacuum system accelerates product shaping speed, shorts the cooling time, reduce product water content.Eps moulding making machine
