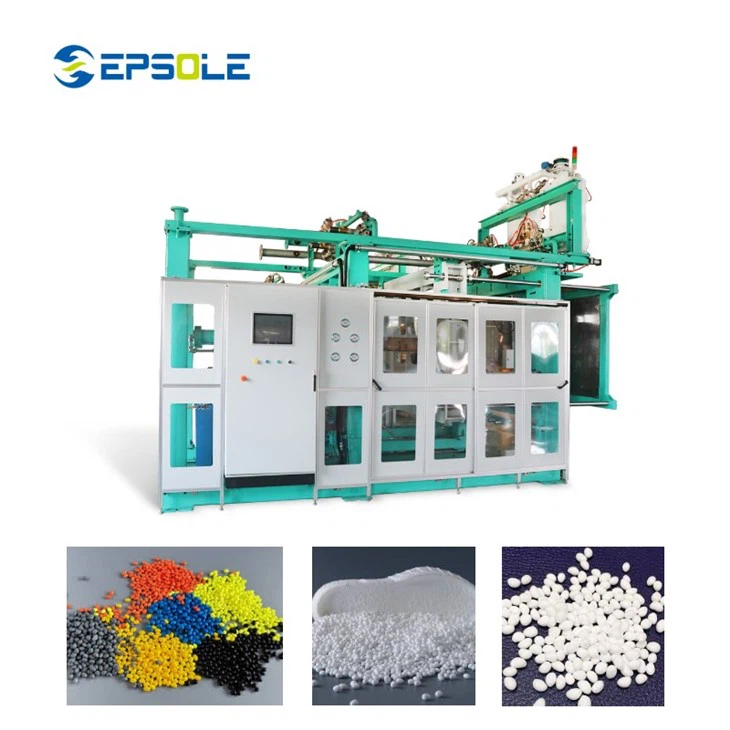

Hangzhou Epsole Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of etpu styrofoam moulding machine in China. We warmly welcome you to buy high quality etpu styrofoam moulding machine for sale here from our factory. Good service and reasonable price are available.
| Machine Type | ETPU SMED Shape Moulding machine | ||||
| Model | ESS1214M | ESS1417M | ESS1915M | ||
| Data | unit | ||||
| Overall | mm | 5363*3310*4852 | 5363*3610*5152 | 5363*3710*5352 | |
| Mould size | mm | 800*1300 | 1200*1400 | 1500*1900 | |
| Product high | mm | 350 | 350 | 350 | |
| Move Distance | mm | 1200 | 1200 | 1200 | |
| Rod | Diameter | mm | 80 | 80 | 100 |
| Quantity | pcs | 4 | 4 | 4 | |
| Hopper | Capacity | L | 145 | 145 | 145 |
| Quantity | pcs | 2 | 2 | 2 | |
| Steam | Machine Inlet | DN | 100 | 100 | 100 |
| Mould Inlet | DN | 50*2 | 50*2 | 50*2 | |
| Pressure | bar | 6 | 6 | 6 | |
| Consumption | Kg | 4~5 | 4~5 | 4~5 | |
| Cooling | Machine Inlet | DN | 80 | 80 | 80 |
| Mould Inlet | DN | 50 | 50 | 50 | |
| Pressure | bar | 4 | 4 | 4 | |
| Consumption | Kg | 0~6.28 | 0~6.28 | 0~6.28 | |
| Vacuum | Connector | 100 | 100 | 100 | |
| Drainage | L/h | 100 | 100 | 100 | |
| Air | Low | DN | 65 | 65 | 65 |
| bar | 4 | 4 | 4 | ||
| High | DN | 50 | 50 | 50 | |
| bar | 6 | 6 | 6 | ||
| Consumption | m³ | 0.3~0.6 | 0.3~0.6 | 0.3~0.6 | |
| Hydraulic | Motor | Kw | 7.5 | 11 | 11 |
| Capacity | L | 400 | 400 | 400 | |
 |
 |
ETPU is polyurethane thermoplastic expanded particles (referred to as ETPU beads or ETPU particles).
It is TPU particles that swell like "popcorn" after being pre-heated under pressure; , The volume has increased by 10 times, so an oval non-crosslinked foamed particle ETPU containing micro-closed bubbles is formed, which looks like popcorn. It not only has excellent elasticity, but also provides superior rebound effect and cushioning performance.
The machine is equipped with high flow hydraulic drive double hydraulic cylinder, which makes machine running steadily and locking tightly; And the locking can be adjusted according to the pressure.
Siemens vacuum pump, advanced water and air cooling system; stainless steel filling material in the vacuum tank greatly increases the vacuum speed.
