Name: China ETPU Tyre Shape Molding Machine Manufacturers, Suppliers - Factory Direct Price - Epsole
Brand: Epsole
SKU: 95740863

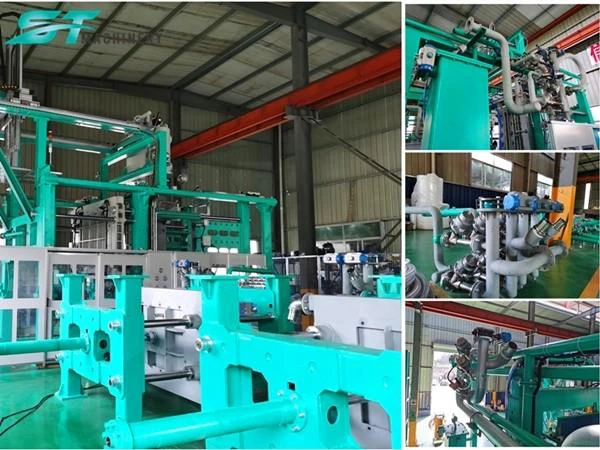

ETPU Tyre Shape Molding Machine

Compared with rubber, tires made of ETPU materials have nearly three times the wear resistance and are very durable even on rough roads. Thanks to the Elastopan dual density polyurethane system, the new inner tube has been specially optimized to provide good resilience. The dual-density tire structure even improves shock absorption by 30%, which significantly improves comfort and the overall riding experience. This non-inflatable tire system also eliminates the trouble of frequent repairs of traditional inner tubes.

Product Details

Hangzhou Epsole Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of etpu tyre shape molding machine in China. We warmly welcome you to buy high quality etpu tyre shape molding machine for sale here from our factory. Good service and reasonable price are available.

Machine Type			SMED ETPU Shape Moulding machine
Model			ESS1214M	ESS1417M	ESS1915M
Data		unit	ESS1214M	ESS1417M	ESS1915M
Overall		mm	536333104852	536336105152	536337105352
Mould size		mm	800*1300	1200*1400	1500*1900
Product high		mm	350	350	350
Move Distance		mm	1200	1200	1200
Rod	Diameter	mm	80	80	100
Rod	Quantity	pcs	4	4	4
Hopper	Capacity	L	145	145	145
Hopper	Quantity	pcs	2	2	2
Steam	Machine Inlet	DN	100	100	100
	Mould Inlet	DN	50*2	50*2	50*2
	Pressure	bar	6	6	6
	Consumption	Kg	4~5	4~5	4~5
Cooling	Machine Inlet	DN	80	80	80
	Mould Inlet	DN	50	50	50
	Pressure	bar	4	4	4
	Consumption	Kg	0~6.28	0~6.28	0~6.28
Vacuum	Connector		100	100	100
Vacuum	Drainage	L/h	100	100	100
Air	Low	DN	65	65	65
	Low	bar	4	4	4
	High	DN	50	50	50
	High	bar	6	6	6
	Consumption	m³	0.3~0.6	0.3~0.6	0.3~0.6
Hydraulic	Motor	Kw	7.5	11	11
Hydraulic	Capacity	L	400	400	400

No matter the road is bumpy or the wind and rain are coming, Elastopan's anti-skid performance makes the bicycle have greater grip and the riding safety is greatly improved. The unique tread design further improves the non-slip performance of the tire.

Tests show that the new tires equipped with BASF Elastopan have the advantages of puncture resistance and puncture resistance, which can reduce the probability of bicycle damage and save maintenance costs. Will provide users with longer-term, non-discounted security.

In addition, compared with ordinary rubber tires, Elastopan's innovative bicycle tire system reduces weight by about 30%, making handling easier, which significantly improves comfort and the overall riding experience.

The design of the cooling water pipeline makes the water cooling valve respond quicker. The cavity copper pipe ring design makes the product contact surface bigger and the cooling more sufficient, therefore the product surface is smoother.

The design of the valve inlet and outlet of each piping system is optimized by being close to the mold, thereby minimizing the energy consumption and increasing the response speed.
