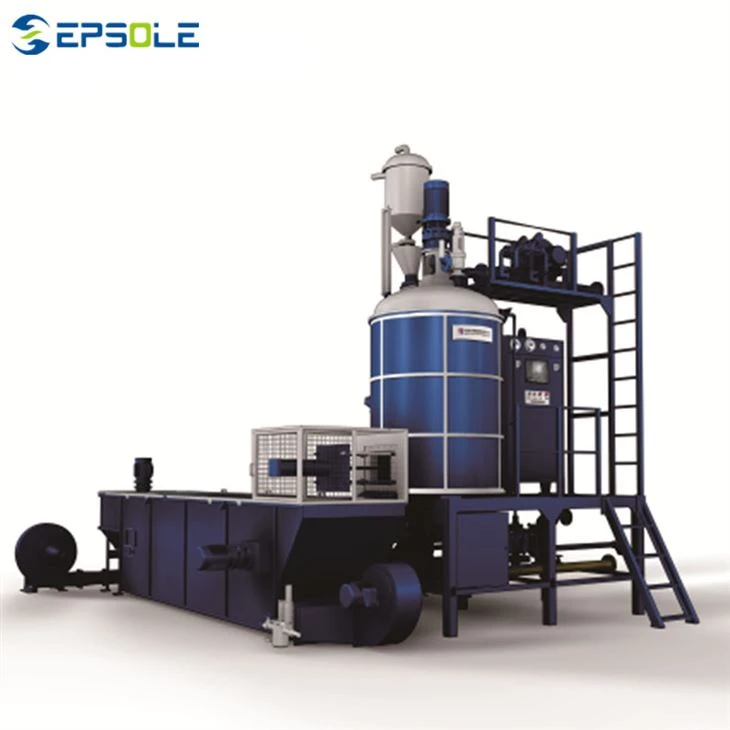

Eps Pre Expander Machine

Hangzhou Epsole Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps pre expander machine in China. We warmly welcome you to buy high quality eps pre expander machine for sale here from our factory. Good service and reasonable price are available.

What is EPS Pre-Expansion?

EPS pre-expansion is the first step in the EPS foam manufacturing process. Raw polystyrene beads (containing a blowing agent, typically pentane) are expanded using steam to increase their size and reduce their density. This process prepares the beads for molding into final products like packaging, insulation panels, or consumer goods.

Components of an EPS Pre-Expander Machine

Pre-Expansion Chamber:

A vessel where raw polystyrene beads are expanded using steam.

Equipped with agitators to ensure even expansion.

Steam System:

Generates and delivers steam to the pre-expansion chamber.

Controls steam pressure and temperature for consistent results.

Feeding System:

Automatically feeds raw polystyrene beads into the pre-expansion chamber.

Discharge System:

Removes the pre-expanded beads from the chamber after the process is complete.

Control Panel:

A computerized system that monitors and controls the pre-expansion process (e.g., temperature, steam pressure, and expansion time).

Cooling System:

Cools the pre-expanded beads to stabilize them before further processing.

Working Principle of an EPS Pre-Expander Machine

Feeding:

Raw polystyrene beads are fed into the pre-expansion chamber.

Steam Injection:

Steam is introduced into the chamber, heating the beads and causing the blowing agent (pentane) to expand.

Agitation:

Agitators inside the chamber ensure even heating and expansion of the beads.

Expansion:

The beads expand to a predetermined density, typically ranging from 10 kg/m³ to 30 kg/m³.

Discharge:

The pre-expanded beads are discharged from the chamber and cooled.

Stabilization:

The beads are stored for a few hours to stabilize before being used in the molding process.

Applications of EPS Pre-Expander Machines

Packaging:

Producing lightweight and protective packaging for fragile items.

Construction:

Manufacturing insulation panels for walls, roofs, and floors.

Consumer Goods:

Creating foam products like coolers, disposable cups, and toys.

Automotive:

Producing lightweight components for vehicles.

Marine and Buoyancy:

Making floating docks, life jackets, and buoys.

Advantages of EPS Pre-Expander Machines

Precision: Allows for precise control of bead density and size.

Efficiency: Automates the pre-expansion process, reducing labor costs.

Scalability: Suitable for both small-scale and large-scale production.

Versatility: Can produce beads of varying densities for different applications.

Key Considerations When Choosing an EPS Pre-Expander Machine

Capacity:

Choose a machine that meets your production volume requirements.

Density Range:

Ensure the machine can produce beads at the desired density for your application.

Automation Level:

Decide between manual, semi-automatic, or fully automatic machines.

Energy Efficiency:

Look for machines with energy-saving features to reduce operating costs.

Maintenance:

Consider the ease of maintenance and availability of spare parts.

Budget:

Balance the initial cost with the machine's features and capabilities.
