Hangzhou Epsole Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of eps auto sandwich panel machine in China. We warmly welcome you to buy high quality eps auto sandwich panel machine for sale here from our factory. Good service and reasonable price are available.
Produce high-insulation EPS sandwich panels efficiently with Epsole's semi-auto machinery. Perfect for cold storage, prefabricated houses, and industrial walls. Reliable, easy to operate, and backed by 20 years of global manufacturing experience.
- Complete Solution Provider: We don't just sell machines; we supply the entire production line including pre-expanders, molding machines, cutting systems, raw materials (EPS granules), and molds.
- Technical Expertise: Our team specializes in optimizing automation and working efficiency, ensuring your factory achieves maximum competitiveness.
- Global Support: From installation guidance to technical information sharing, we are committed to mutual benefits and long-term cooperation with customers worldwide.
| Parameter | Details / Options |
|---|---|
| Machine Type | Semi-Automatic EPS Sandwich Panel Molding Machine |
| Panel Thickness | 50mm - 200mm (Adjustable via mold or spacer) |
| Panel Width | Standard 1000mm (Customizable up to 1200mm) |
| Panel Length | Customizable (Typically 2000mm - 6000mm) |
| Production Speed | 4 - 6 cycles per minute (Depending on thickness & density) |
| Density Range | 10 - 25 kg/m³ (Precisely controlled) |
| Power Supply | 380V / 50Hz / 3-Phase (Customizable) |
| Total Power | ~15 - 25 KW (Specific model dependent) |
| Steam Pressure | 0.6 - 0.8 MPa |
| Air Pressure | 0.6 - 0.8 MPa |
| Control System | PLC + Touch Screen (User-friendly interface) |
| Mold Material | Aluminum Alloy (High thermal conductivity, durable) |
The Smart Choice for Growing Businesses: Semi-Automatic Efficiency
Our Semi-Auto Sandwich Panel Machine offers the perfect balance between cost-effectiveness and production quality:
- Lower Initial Investment: Significantly more affordable than fully automatic lines, ideal for startups or expanding factories.
- Flexible Operation: Easy to adjust parameters for different panel thicknesses and densities without complex reprogramming.
- Reliable Performance: Combines automated steam control and timing with manual loading/unloading, ensuring consistent bead fusion and surface quality.
- Easy Maintenance: Simplified mechanical structure reduces downtime and maintenance costs.
- Quick ROI: Start producing high-quality insulation panels immediately with minimal training required for operators.
Versatile Applications for Your Panels
The EPS sandwich panels produced by our machine are widely used in:
- Cold Storage & Refrigeration: High-insulation walls and roofs for food preservation and pharmaceutical storage.
- Prefabricated Houses: Lightweight, durable, and quick-to-assemble wall/roof panels for temporary housing, villas, and site offices.
- Industrial Warehouses: Energy-efficient cladding for factories and logistics centers.
- Clean Rooms: Smooth-surface panels suitable for hygiene-critical environments like hospitals and food processing plants.
- Agricultural Buildings: Temperature-controlled structures for farming and livestock.

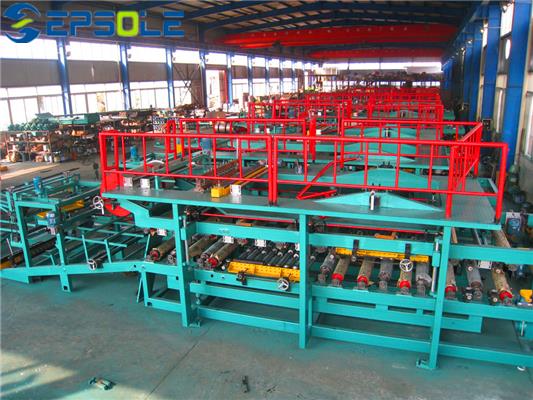

EPS Auto Sandwich Panel Machine
EPS/Rock Wool Sandwich Panel
Machine
● Speed: 0-8m/min
● Power: 35kw
● Weight: 22t
● Dimension: 50mx2.6mx4.8m
● Panel Thickness: 50mm-300mm
● Core Material: EPS, XPS, PU board, Rock wool
PU Sandwich Panel Machine
PU sandwich panels are used for cooling board, wall panel and roof panel. Linner speed, 0-6m/min 24m long double belt tracking unit 0-12m/min 36m long double belt tracking unit 4 or 6 component PU injection machine.
EPS Auto Sandwich Panel Machine USING
● Industrial plant, warehouse
● Cold storage, box packaging
● Light steel residential, original building mezzanine
● Mobile board room
● Various purification rooms, air conditioning rooms
EPS Auto Sandwich Panel Machine ADVANTAGE
● Light weight, about 10kg ~ 14kg / square meter, equivalent to 1 / 30 of the brick wall.
● Thermal insulation, good suction and sealing performance.
● Convenient construction, flexible and quick installation, and the construction period can be shortened by more than 40%.
EPS Auto Sandwich Panel Machine ADVANTAGE
● Bright color, beautiful appearance, no need to decorate the surface.
● High strength, can be used for maintenance structure, load-bearing structure, bending and compression resistance, general houses can be used without beams and columns.
We focused on top quality shape mold-ing machine and other foam equipment for over 20 years in China.
Hot Tags: EPS auto sandwich panel machine, China, manufacturers, suppliers, factory, price, vacuum, for sale, THE FIEST MOBILE EPS PLANT
