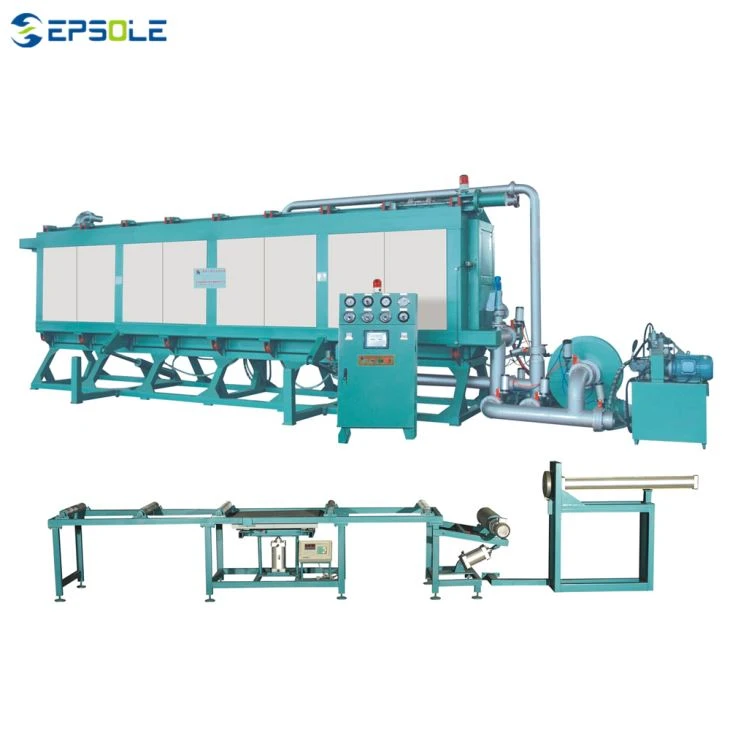

Hangzhou Epsole Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of automatic eps block molding machine in China. We warmly welcome you to buy high quality automatic eps block molding machine for sale here from our factory. Good service and reasonable price are available.
1.Machine's all six panels are through heat treatment to release welding stress, so that panels cannot deform under high temperature.
2.After heat treatment, all panels are processed by sand blasting treatment t remove rust, then first painting and final painting is done to keep machine anti-corrosion.
3.Steaming is controlled by Timer and three Germen electrical gauge switches, with a safty valve to save from gauge malfuncton situation.
ESB200-600 EPS block molding machine | |||||||
Item | ESB200V | ESB200A | ESB400V | ESB400A | ESB600V | ESB600A | |
Steam | Entry Consumption Pressure | DN100 30~50 kg/cycle 0.8Mpa | DN100 20~30 kg/cycle 0.8Mpa | DN150 60~90 kg/cycle 0.8Mpa | DN125 45~55 kg/cycle 0.8Mpa | DN100 100~130 kg/cycle 0.8Mpa | DN100 60~70 kg/cycle 0.8Mpa |
Compressed Air | Entry Consumption Pressure | DN40 1.5~2 m3/cycle 0.6Mpa | DN40 1~1.5 m3/cycle 0.6Mpa | DN40 2~2.5 m3/cycle 0.6Mpa | DN40 1.8~2 m3/cycle 0.6Mpa | DN40 2~3 m3/cycle 0.6Mpa | DN40 2~2.5 m3/cycle 0.6Mpa |
Cooling Water | Entry Consumption Pressure | DN40 0.2~0.4 m3/cycle 0.6Mpa | DN40 0.2~0.4 m3/cycle 0.6Mpa | DN40 0.6~0.8 m3/cycle 0.6Mpa | DN40 0.6~0.8 m3/cycle 0.6Mpa | DN40 1.5~3 m3/cycle 0.6Mpa | DN40 1.5~3 m3/cycle 0.6Mpa |
Throughput | 15kg/m3 | 5min/cycle | 5~12min/cycle | 7min/cycle | 7~18min/cycle | 8min/cycle | 8~18min/cycle |
Overall Dimension | (L*W*H) | 5700*4000* 2850(mm) | 4000*2150* 2120(mm) | 11000*4500* 3000(mm) | 6040*2270* 2250(mm) | 12600*3960* 2906(mm) | 8100*2500* 3100(mm) |
Note:We can make thermocol block machine according to customer's requirement. | |||||||
